Radial Stagebug SB-6

Compact stereo isolator for bal/unbalanced signals, passive

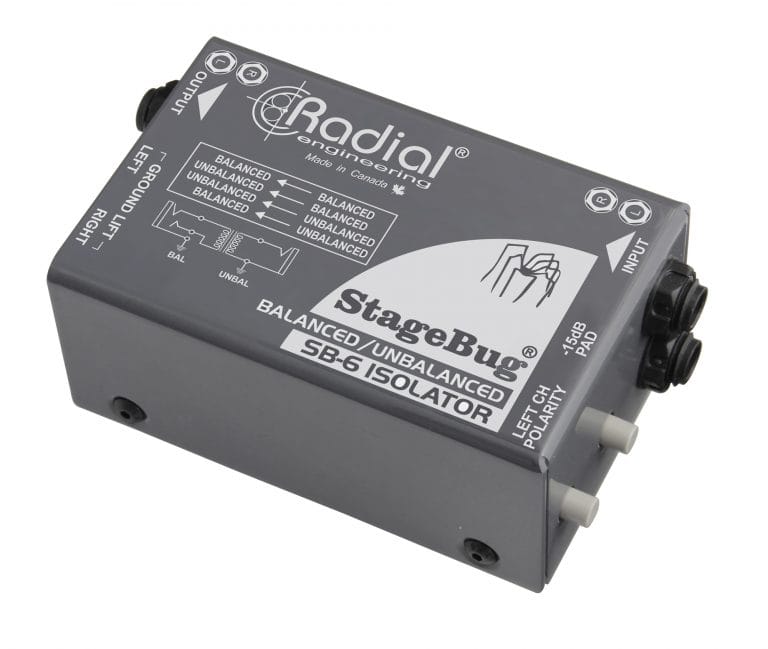

The StageBug SB-6 is a  two-channel passive audio isolator designed to accommodate both balanced and unbalanced signals and effectively eliminate noise when used with instruments, consumer electronics, or professional line-level devices.

• Isolator for balanced and unbalanced signals
• Eliminates hum and buzz caused by ground loops
• Exceptionally linear from 20Hz to 20kHz
• Automatically configures for hi-Z or lo-Z signal chains

Problem solver for stereo systems

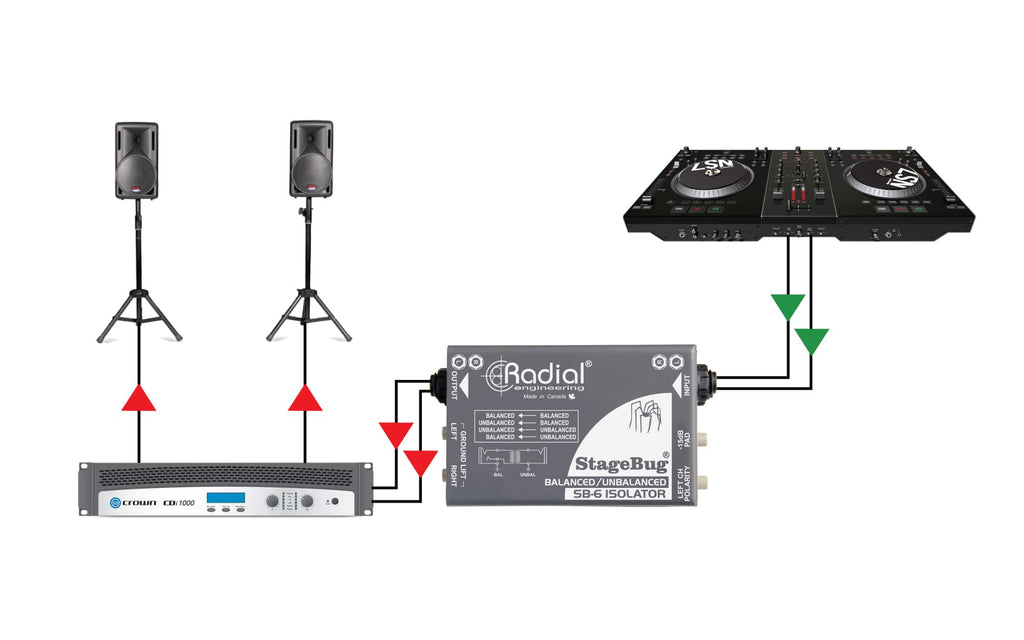

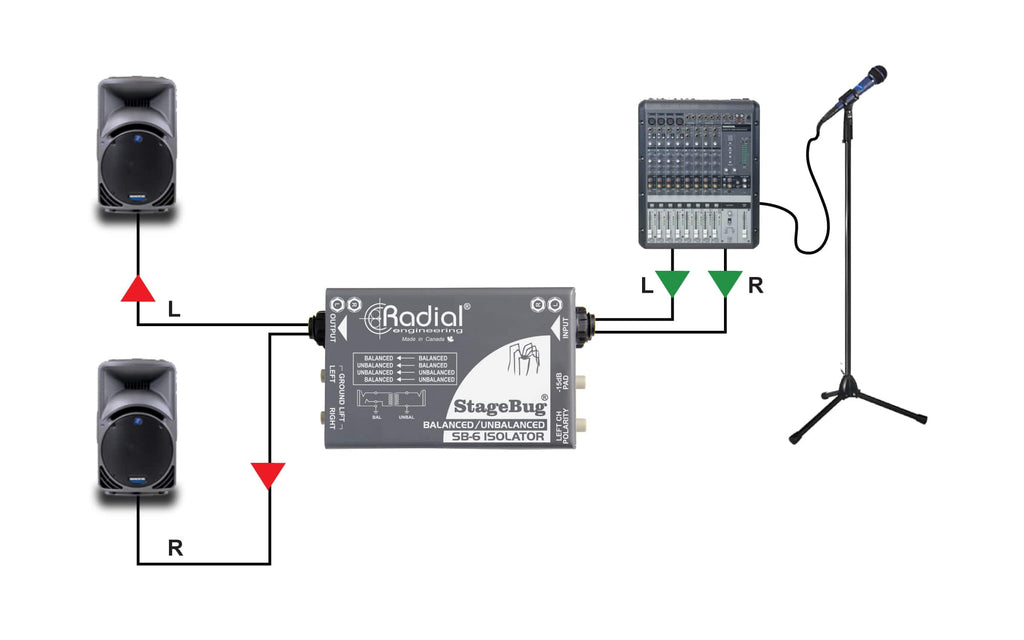

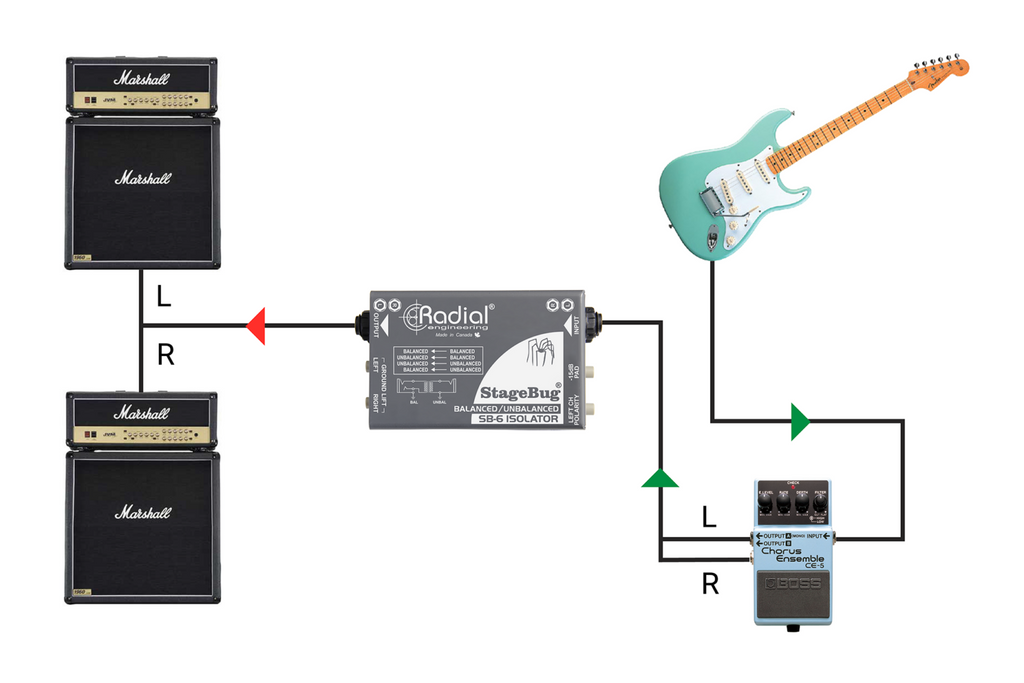

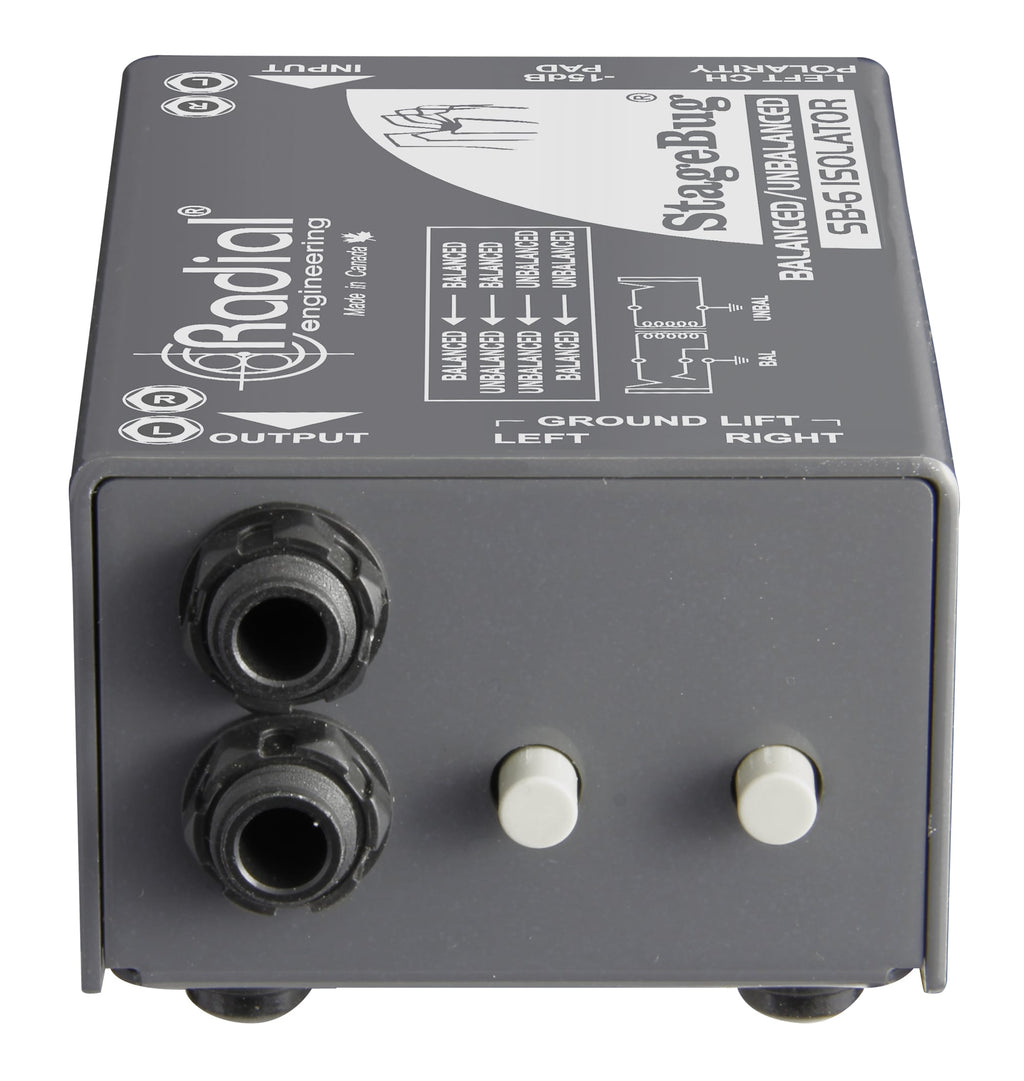

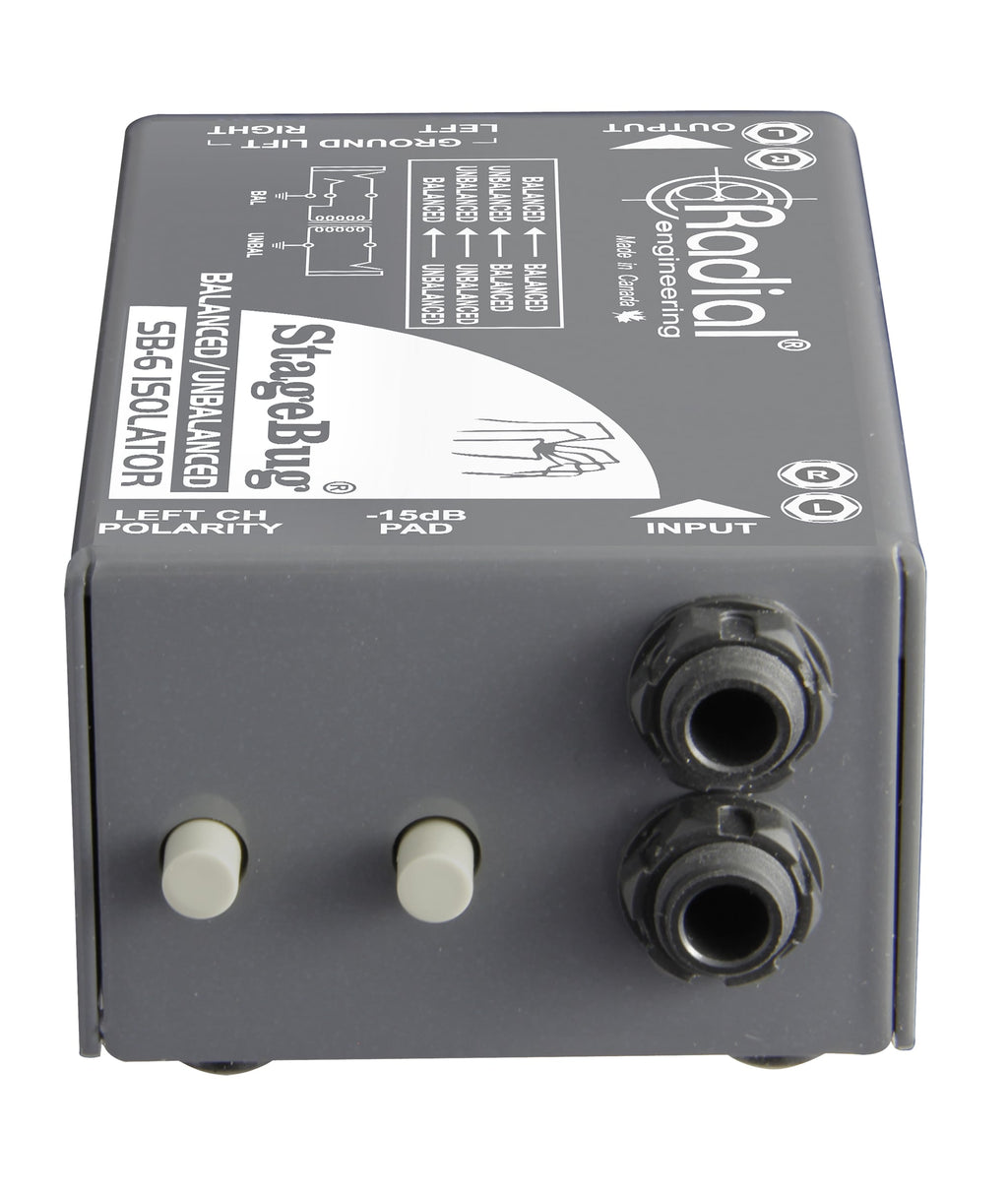

The SB-6 helps remove noise from two channel audio systems, stereo guitar racks, and pedalboards. Two on-board isolation transformers provide a flat frequency response from 20Hz to 20kHz, while removing hum and buzz from ground loops. Dual ground lift switches help further reduce noise, and a -15dB pad allows you to handle high volume outputs without distortion. When using the SB-6 before a set of powered speakers or guitar amplifiers, a polarity reverse switch corrects frequency cancellation and ensures both speakers play back in phase with one another. The SB-6 is completely passive with no need for power, so it's easy to insert into any system to remove noise quickly.

The SB-6 is a passive isolator that has been designed to work with both balanced and unbalanced signals. As detailed in the graphs below, the SB-6 is exceptionally linear throughout the audio range and exhibits nearly flawless phase shift even in the lower registers. Very low distortion from -40dB to +10dB makes the SB-6 ideally suited for instruments, consumer audio devices and pro-balanced audio signals, while the compact size makes it easy to integrate in just about any situation.
